Product Introduction

Stainless steel plate is a metal plate made of stainless steel (mainly composed of iron, chromium, nickel and other alloys) through hot rolling, cold rolling, annealing and other processes. It has excellent corrosion resistance, high strength, high temperature resistance and aesthetics. Common materials include 304 (18Cr-8Ni), 316 (containing molybdenum, stronger corrosion resistance), 430 (ferritic stainless steel), etc., which can meet the needs of different environments. Its surface can be processed into a variety of effects such as mirror, brushed, sandblasted, etc., and is widely used in architectural decoration (such as curtain walls, elevators), industrial equipment (chemical storage tanks, food machinery), household appliances (kitchenware, tableware) and transportation (ships, auto parts) and other fields. Stainless steel plates have various specifications, ranging from 0.1mm to 100mm in thickness, and widths are usually between 1000mm and 2000mm. They can be customized according to needs (such as cutting, bending, welding, etc.). They are indispensable high-performance materials in modern industrial production and daily life.

Stainless steel producers take advantage of the properties of stainless steel to improve quality through various surface treatments. We provide different types of stainless steel surface treatment processes, such as BA, 2B, 2D, 2K, 4K, 6K, 8K, NO.4, HL, SB, Embossed, etc.

About Us

Zhongxi Metal is a professional manufacturer engaged in the research, development, production, sale and service.,  is committed to providing one-stop steel procurement services for global client.

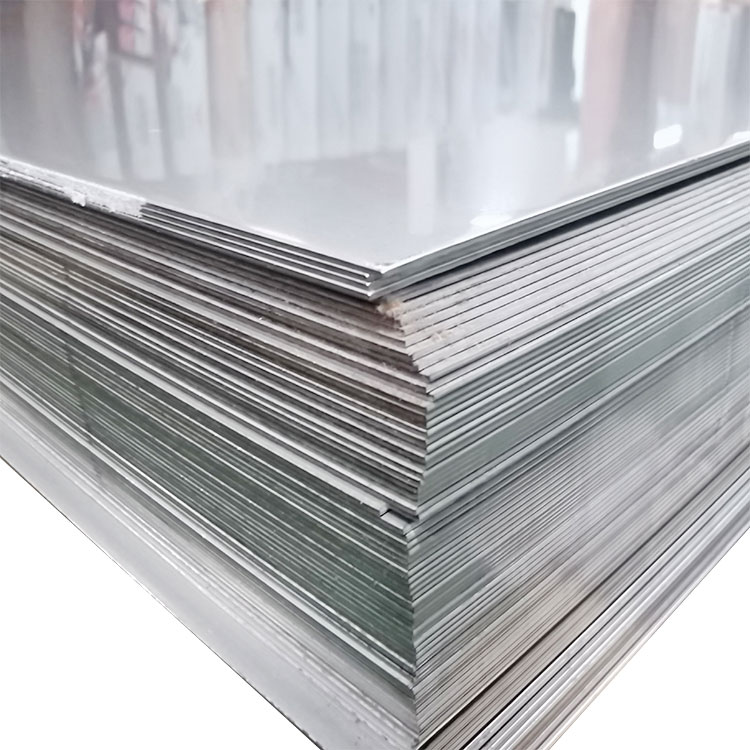

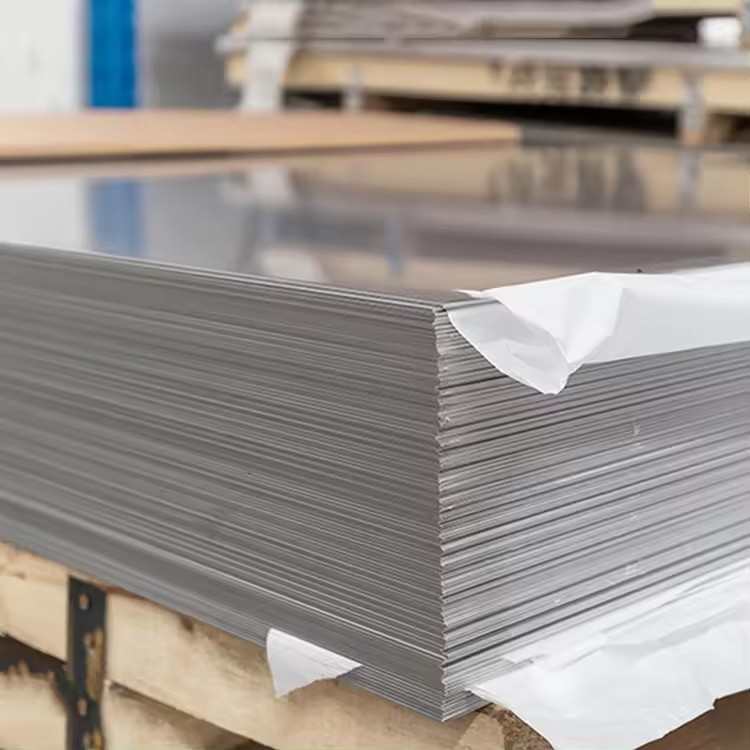

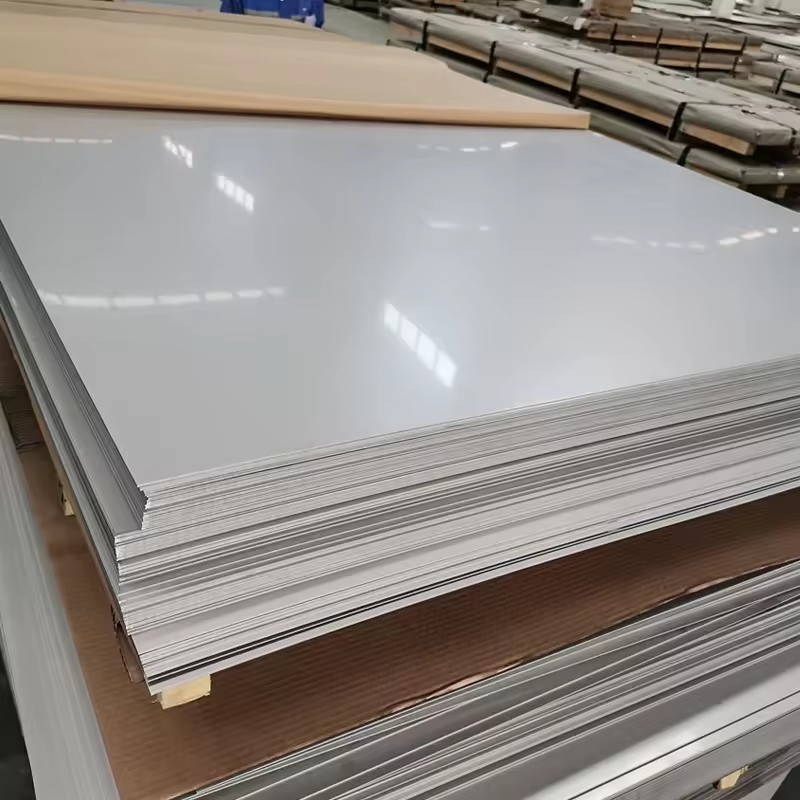

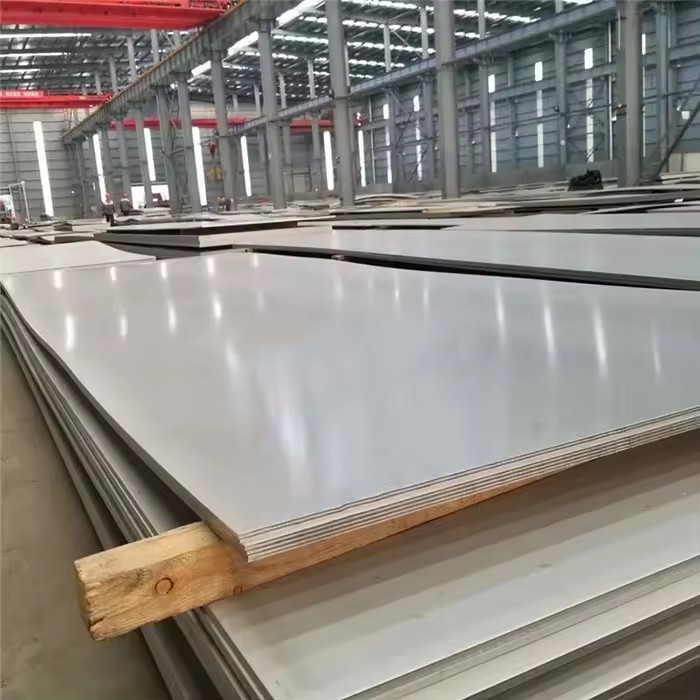

Advantages of 2205 Stainless Steel Sheet

1. Exceptional Corrosion Resistance in Chloride-Rich Environments

2205 duplex stainless steel combines austenitic-ferritic microstructure with 22-23% chromium, 3-3.5% molybdenum, and 0.14-0.20% nitrogen, delivering superior resistance to pitting, crevice corrosion, and chloride stress corrosion cracking (SCC) compared to 316/316L grades. This makes it ideal for marine, chemical processing, and desalination applications where conventional austenitic steels may fail.

2. High Strength and Reduced Material Costs

With approximately double the yield strength (≥450 MPa) of 316/316L, 2205 enables thinner wall constructions in pressure vessels, piping, and structural components. This reduces material usage by 30-50%, lowers transportation/installation costs, and minimizes foundation requirements—providing significant long-term cost savings without compromising safety margins.

3. Superior Welding and Fabrication Capabilities

The balanced dual-phase microstructure ensures excellent weldability using standard techniques (TIG/MIG) with ER2209/E2209 fillers. It maintains low thermal expansion (7.5-8.1 μm/m°C) and high thermal conductivity (10.5 Btu/ft·hr·°F), minimizing distortion during welding. Cold forming requires larger bend radii (≥2T) due to higher strength but offers good formability comparable to austenitic grades.

4. Thermal Stability and Oxidation Resistance

2205 maintains mechanical integrity and oxidation resistance up to 600°F (316°C), making it suitable for high-temperature applications like furnace components, boiler systems, and oil refinery equipment. Its chromium-rich passive layer prevents scaling and degradation under thermal cycling conditions.

5. Cost-Effective Long-Term Performance

The combination of high strength, corrosion resistance, and durability extends service life beyond 30 years in harsh environments (e.g., offshore platforms, pulp mills). Reduced maintenance costs, minimized downtime, and enhanced safety margins make 2205 a cost-competitive solution despite higher initial material costs compared to carbon steel or 300-series stainless steels.

We have our own Physical & Chemical Testing Center Lab to guarantee our product quality. Our test items & instrument fully meet international standards.

Applications of Stainless Steel Sheet

Stainless steel can be found in a wide range of products, including kitchen appliances, automotive parts, airplanes, and medical equipment. Stainless steel offers a unique set of qualities that many metals do not have on their own, making it a vital resource to the modern world. It’s not only extremely strong, but it’s also corrosion-resistant and simple to sterilize. Stainless steel’s adaptability is due to these two fundamental qualities which allow it to be used in a wide range of vital applications.

Medical Equipment – Stainless steel is used extensively in modern medical equipment due to its ease of sterilization and high corrosion resistance. Surgery and dental instruments, surgical tables, and larger equipment such as MRI scanners are all made from stainless steel material. Surgical implants such as replacement joints, pins, and plates are ideally made of stainless steel.

Aircrafts and Aerospace – Aircraft must be able to resist a wide range of climatic conditions, including extremes in temperature, precipitation, and elevation pressures. The qualities of stainless steel enable it to easily address all of these issues, making it the most essential material for aircraft and aerospace applications.

Building and Construction – Stainless steel is a fantastic construction material since it is both strong and flexible. Because of its corrosion resistance, it provides structures a superb modern aesthetic while still being easy to maintain.

High-pressure Applications – Stainless steel’s strength makes it ideal for building, but it also makes it resistant to high pressure and temperatures. As a result, stainless steel is an excellent choice for high-pressure applications such as energy systems like power plants.

Food Industry – Stainless steel is advantageous in food and catering applications for many of the same reasons that it is advantageous in medical equipment. Stainless steel makes for fantastic, sharp knives and can endure high heat for cooking, in addition to being easy to clean.

Contact Us

As a leading company, Zhongxi Metal is known for our excellent product quality and professional services, providing our customers with a reliable partner. We have a global sales network that can meet the needs of customers in different countries and regions.If you need more information about us or have any other needs, please feel free to contact us. We look forward to working with you to create a better future.
